Abstract

Synthesis of homogeneous spherical silver nanoparticles (Ag NPs) was conducted successfully by photochemical reduction of silver ions (Ag⁺) (10^-4 M) using near ultraviolet (UV) pulsed laser (355 nm) irradiation in an aqueous solution of surfactant sodium dodecyl sulphate (SDS) and cetyltrimethylammonium bromide (CTAB). Higher concentration of SDS and CTAB facilitated dispersion of reduced silver salt. Size of NPs was 72 and 163 nm in SDS and CTAB, respectively. Precursor silver acetate salt was irradiated for 30 min. Effect of surfactant concentration, irradiation time, and hydrophilicity of surfactants were investigated. Amount of Ag⁺ ions reduced increased with surfactant concentration and irradiation time.

Key words

laser irradiation, pulsed laser, silver nanoparticles, photoreduction

Introduction

For last two decades synthesis of nono-metallic particles is gaining interest of researchers all over the world [1-4]. Favorably improved optical, electrical, magnetic, and pharmaceutical [5-7] properties of these nanocomposites make them potential candidates for catalysts, semiconductors, photo-voltic devices and medical applications for diagnosis and treatment [8,9] compared to bulk materials.  In early period nanoparticles were synthesized in few milligram amount using toxic bulk organic solvents in inverted micelles for academic purposes [10]. In next step researchers were successful in synthesizing nanomaterials in large amount using severe conditions of high temperature and pressure [11].  Break through was obtained when Shervani and Yamamoto [12,13] discovered method of bulk nanoparticles production in glucose–water solution without addition of reducing agent at room temperature and pressure. Continuous synthesis of nanoparticles and particles adsorbed on charcoal surface were established for mass production in kilogram amount using a cheap micro-space continuous flow reactor, operated by ordinary pumps, technology under ambient conditions [14].  Catalytic activities of such nanoparticles were extraordinary high due large surface area and small size of particles when employed as catalysts. In top-down method where nanocrystals are removed from the substrate by high energy laser ablation is common [15-17].  Correard, et al. [18] prepared Au NPs by femtosecond laser ablation method in aqueous biocompatible solution of dextran and polyethylene glycol for medical applications. Authors have obtained blood red color Au NPs dispersed in water and had a prominent band at 520 nm in UV-vis spectrum. Size of NPs was in the range of 20-30 nm. In bottom up approach, Abid, et al. [19] prepared Ag NPs by reduction of AgNO₃ in aqueous solution by high intense laser irradiation of pulse energy 12-14 mJ. Authors tested addition of 2-propanol in SDS solution and noticed that propanol addition decreases silver ions reduction. None of the authors investigated effect of surfactant hydrophilicity and anion or cationic nature of surfactant.  In this article, we have described bottom up preparation of nanosized Ag NPs when silver salt exposed to intense nanosecond (ns) pulsed laser irradiation in SDS and CTAB aqueous solution. The effect of hydrophilicity of surfactants on NPs yield has been reported first. The method is important from green synthesis viewpoint since it does not involve addition of toxic reducing agents and yield and size of particles can be controlled by adjusting the laser irradiation time and type of surfactants used.  The research is important from viewpoint of laser irradiation method application in continuous flow microspace reactors for production of nanomaterials on large scale in several grams in short time.

Experimental

Materials

Silver acetate of 99.0 % purity was purchased from Sigma-Aldrich. Sodium dodecyl sulphate (SDS) and cetyl trimethyl ammonium bromide (CTAB) were from Wako Pure Chemicals, Co. Japan. Water used for samples’ preparation was pure and deionized (resistivity, 18 M Ω^-cm).

Preparation of silver nanoparticles

To disperse reduced Ag NPs two kinds of stabilizing agents CTAB a cationic surfactant and SDS an anionic surfactant were used. In all experiments, a stock aqueous solution of silver acetate precursor salt of 0.01M was prepared in water. Salt concentration was kept at 10^-4 M or 5×10^-4 M. Concentration of stabilizing agents for CTAB was kept in the range 10^-5 to 10^-4 M and for SDS was varied 10^-4 to 10^-3 M. Solutions of surfactant containing silver acetate precursor salt were transparent at experimental room temperature.  For laser irradiation experiment, quartz cell (10×10×45 mm³) containing 3 mL of sample was used as a sample holder. Quartz cell was placed on a magnetic plate and solution was mixed by placing a magnetic bar and stirred at the rate 110 revolutions/min inside the cuvette to allow uniform irradiation of solution by laser beam.  The laser beam was directly introduced to the sample solution without using focus lens. Figure 1 shows a schematic diagram of the experimental setup. Nanosecond near UV laser beam was generated by Quantel (Brilliant) manufacturer. The beam has specification of wavelength 355 nm; pulse width 6 ns; repetition rate: 10 Hz of energy 40 mJ/pulse maximum laser beam output. All experiments were performed at ambient conditions of room temperature and pressure.

Figure 1. . Experimental arrangement for ns pulsed laser fabrication of silver nanostructure in an aqueous solution of silver salt.

Characterization techniques

The photochemical reduction of silver salt to silver metal was monitored visually by naked eyes and recording the UV-vis spectra of the preparations which are one of the most widely used technique for metallic nanomaterial characterization [20]. On exposer of Ag precursor salt solution to above pulsed laser, the colourless precursor solution changed to light yellow or dark yellow colour is the characteristic of Ag NPs formation.

Appearance of sharp plasmon resonance band at 400 nm confirmed presence of the of mono dispersed Ag NPs. UV-visible spectrophotometer Shimadzu UV-1600 was used for spectral recoding. Scanning Electron Microscopy (SEM) is well known technique to determine morphology and size of nanoparticles. SEM sample was prepared by drop casting a small portion of photo-reduced product on ITO substrates and dried in a desiccator. SEM  images were recorded on Hitachi FE-SEM-S4300 apparatus operating at 20.0 kV for structural and size determination of Ag NPs. The elemental analysis of Ag NPs were performed using an energy dispersive X-ray (EDX) spectrometer attached to the SEM machine.  Dynamic laser light scattering (DLS) apparatus was employed to determine the size distribution of the particles. For size determination of synthesized Ag NPs, a high performance digital light scattering (DLS) particle size analyser Malvern Instrument Co., MAL501088 was used. DLS apparatus is known to measure the particles size including size of stabilizing agent enveloping the metallic particles along with the actual size of the metallic core.

Results and Discussion

Optical properties of Ag NPs as observed by naked eyes

The optical properties of metal NPs are highly dependent on their size and shape and have different colors due to the reflection of light [13]. After irradiating precursor salt solution containing surfactants SDS and CTAB with ns pulsed laser, a clear colorless solutions Figure 2a and Figure 3a, respectively changed to light yellow color as shown in Figure 2b and Figure 3b, respectively in just 10 min of irradiation time. The possibility of silver acetate (Ag⁺) reduction in CTAB solution by electron donor bromide ion has been ruled out by mixing sodium acetate with CTAB for 5, 10,15, and 30 min.  The solution did not change to yellow Ag NPs preparation.  However, solution remained clear at these conditions. Thus NPs formation is really due to laser photon reduction not due to charge transfer from bromide ion. Tubes in Figures 2b-2d and Figures 3b-3d are the Ag NPs preparations for SDS and CTAB stabilised preparations, respectively, of increasing yield on 10, 15, and 30 min irradiation to ns laser as confirmed by increasing color intensity of the tubes. Increased NPs on longer irradiation was also confirmed by recording UV-vis spectra of preparations which will be discussed in the following section.

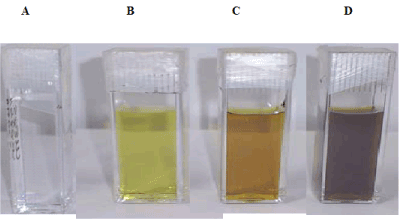

Figure 2. Digital optical images of phenomena showing the formation of Ag NPs when 5 × 10^-4 M Ag salts irradiated at different time in 10^-3 M SDS aqueous solution. A) zero irradiation time; B) 10 minutes; C) 15 minutes; D) 30 minutes.

Figure 3. Digital optical images of phenomena showing the formation of Ag NPs when 10^-4 M Ag salts irradiated ay different time in 10-4 M CTAB aqueous solution. A) zero irradiation time; B) 10 minutes; c) 15 minutes; D) 30 minutes.

UV-vis spectra recording of Ag NPs

Figure 4 is UV-vis absorption spectra of colloidal solutions of Ag NPs obtained by laser irradiation in SDS aqueous solution of silver acetate (5x10^-4 M). Plasmon resonance band at 400 nm is the characteristics of mono dispersed Ag NPs. As the irradiation time increased from 3 min to 30 minutes, spectral intensity of the 400 nm increased to a maximum value of 3.25 and remained same even after exposer time increased beyond 30 min.  In 30 min of exposer time, all Ag+ ions (5x10^-4 M) were reduced by water electron. Amount of SDS needed to stabilize reduced Ag NPs was worked out by a separate experiment (Figure 5) in which increased amount of SDS was added in a tube containing 10^-4 M precursor salt. In varied SDS concentrations (8x10^-4, 5x10^-4, and 5x10^-3 M) salt was exposed to a fix 30 min ns laser. It was noticed that 5x10^-3 M SDS was enough to stabilize Ag NPs. As the intensity of UV-vis Ag NPs band reached to a maximum of 3.25 (Figure 5).

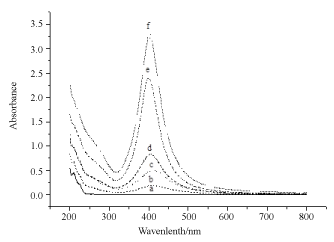

Figure 4. UV-vis spectral recording of Ag NPs formed by irradiating Ag salt using UV laser of 355 nm at different time at in SDS solution of 5 × 10^-1 M Ag salt concentration 5 × 10^-4 M. a) zero irradiation time; b) 3 min irradiation time; c) 5 minutes irradiation time; d) 10 minutes irradiation time; e) 15 minutes irradiation time; f) 30 minutes irradiation time.

Figure 5. UV-vis spectral recording of Ag NPs formed by irradiating Ag salt using UV laser of 355 nm at different time at in SDS solution for 30 min irradiation time at different concentration of SDS. Ag salt concentration 10^-4 M. a) zero irradiation time and SDS amount 8 × 10^-4 M; b) in absence of SDS; C) 5×10^-4M; D) 5 × 10^-1 M.

In this research two types of surfactants an anionic SDS and a cationic CTAB were tested to stabilise Ag NPs in water solution. The experiment of CTAB is as follows. Figure 6 is the UV-vis recordings of neat CTAB, Ag precursor salt, and salt admixed CTAB. When salt was added to CTAB, a shoulder in the spectrum was obtained at 250 nm. Development of shoulder was attributed to the labial bromide anion which has capability to donate electron to reduce Ag cation while in anionic SDS negative charge on oxygen atoms is stable due presence of four oxygen atoms that limits the capability of SDS to donate or loose electron to reduce silver acetate.  An experiment was conducted in a tube by mixing appropriate solution of silver acetate salt and CTAB, mixture became turbid after keeping solution for some time which was not found in SDS and silver acetate mixture. Thus, apparently CTAB bromide anion has tendency to reduce silver salt is the reason of appearance of shoulder in former.  Thus, anionic and cationic surfactants behaved differently in preparation of Ag NPs.  Moreover, SDS head group is more polar than CTAB thus dispersion power of SDS is more than CTAB is revealed by 30 minutes irradiation UV-vis spectral recording. In SDS absorbance of Ag NPs is 3.25 while it remained low (1.9) in CTAB.

Figure 6. UV-vis spectral recording of a) CTAB 10^-4 M; b) silver acetate salt; c) reduced silver in absence of any laser irradiation.

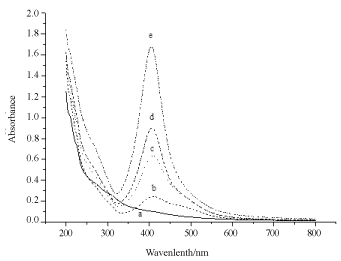

Figure 7 is the spectra of Ag NPs when Ag salt was irradiated for 5, 10, 15, and 30 min in CTAB solution. Formation of Ag NPs enhanced on longer laser irradiation as was the case in SDS. Stabilization of reduced Ag NPs takes place even at low SDS concentration or pre-micellar or hemi-micellar concentration of 5x10^-4 M.   Though SDS CMC is 8x10-3 M, but hemi-micellar concentration is enough to capture the reduced Ag and stop them to aggregate.  As shown in Figure 8, Ag NPs yield increased sharply in the premicellar domain of SDS as expected.  After CMC NPs concentration did not increase so much. In this experiment amount of Ag salt (5x10^-4 M) and laser irradiation time (30 min) was kept constant. Ag⁺ ions reduction occurred to Ag metal by the solvated electron formed by ns laser of 355 nm or 290 mJ/cm².  As surfactant molecules are in solution, high energy non-metals are captured or shelled by surfactants to stop them aggregating in to large crystals.

Figure 7. UV-vis spectral recording of Ag NPs obtained by irradiating Ag salt using UV laser of 355 nm at different time at in CTAB solution of 10^-4 M Ag salt concentration 5×10^-4 M. a) zero irradiation time; b) 5 min irradiation time; c) 10 minutes irradiation time; d) 15 minutes irradiation time; e) 15 minutes irradiation time; f) 30 minutes irradiation time.

Figure 8. Change in photo-reduction efficiency vs SDS concentration measured at 400nm. Ag NPs dispersion enhanced with SD s concentration. Ag precursor salt is 5 × 10^-4  M.

Morphology and size determination

SEM and DLS measurements were conducted to determine size and polydispersity of Ag NPs. Samples were prepared by irradiating a 10^-4 M Ag salt in 5x10^-3 M SDS water solution for 30 min irradiation time. Figure 9 is the SEM image of Ag NPs recorded by loading sample on ITO holder. Particles are spherical shape and mono-dispersed with average particles’ size of 72 nm. Histogram bars of particles’ size measured by DLS are shown in Figure 10 and particle distribution plot in Figure 11 when NPs were prepared by same preparation as in SEM recording. Ag NPs’ size measured by SEM and DLS are same. Figure 12 is the SEM image of Ag NPs prepared by laser irradiation as defined in experimental section stabilized in CTAB surfactant. Compared to SDS, particle size is large in CTAB. It is 163 nm on the average. Particles distribution bars and graph are given in Figures 13 and 14, respectively. Most particles are in the range of 100 to 200 nm. SDS is anionic surfactant with an immobile negative charge on oxygen atom moving over three other oxygen atoms. While CTAB is a cationic surfactant with a static negatively charged bromide ion capable of donating electron. As shown in Figure 6, there is no shoulder in silver acetate spectrum in water and CTAB solution when recorded separately. After mixing silver acetate and CTAB a prominent shoulder appeared without laser irradiation, this shoulder has been attributed to the formation of silver bromide or reduced silver salt where silver gets a negative charge from loosely held electron from bromide ions which is not the case in SDS surfactant.

Figure 9.  SEM image of Ag NPs of 10^-4 M silver salt irradiated for 30 min in SDS solution of 5 x 10^-3 M solution. Monodispersed spherical particles of diameter 100-150 nm range are visible.

Figure 10. Ag NPs histogram obtained by irradiating salt for 30 mins as recorded by DLS. SDS concentration 5 x 10^-3 M and salt concentration 10^-4 M.

Figure 11. Ag NPs histogram obtained by irradiating salt for 30 min as recorded by DLS. SDS concentration 5 x 10^-3 M and salt concentration 10^-4 M; average size 72.24 nm.

Figure 12.  SEM ims10^-4 M silver salt irradiated for 30 min in CTAB solution of 10^-4 M solution. Monodispersed spherical particles are visible.

Figure 13. Ag NPs size distribution plot as measured by DLS and prepared by irradiating Ag salt in CTAB solution of concentration 10^-4 M. Irradiation time is 30 min. Concentration of Ag salt is 10^-4 M.

Figure 14. Ag NPs distribution plot obtained by irradiating salt for 30 min as recorded by SEM. SDS concentration 5 x 10^-3 M and salt concentration 10^-4 M.

Composition of NPs

Elemental analysis was performed by using EDX probe attached to the SEM apparatus. Figure 15 is EDX spectrum of Ag NPs prepared with ns laser irradiation method. The presence of a dominant band in the EDX spectrum at 3.0 keV confirmed presence of silver metal. The results indicated that the reaction product was composed of high purity Ag element.

Figure 15. EDX spectrum of Ag NPs showing presence of Ag metal in preparation. Spectrum was recorded on ITO glass holder.

Conclusion

We demonstrated first the synthesis of stable Ag NPs from its salt using ns pulsed laser irradiation of 355 nm. When high energy quanta of photons ejected electron from water which reduced silver cation. As soon as high energy nano-silver is formed they are stabilised by surfactants SDS or CTAB to form stable colloids. Size of particles were smaller (72 nm) in SDS compared to CTAB (163 nm) due to more hydrophilic polar head group of SDS compared to hydrophobic CTAB head group. 30 min irradiation time was enough to reduce salt completely. Hemi-micellar concentration or pre-micellar concentration of both the surfactants is good to stabilized Ag NPs. EDX elemental analysis showed the silver composition of NPs. Method has given directionality to assemble continuous flow micro space reactor to produce nanomaterials in grams or kilograms amount in nontoxic solvent water for industrial and pharmaceutical applications.
