Use of quantitative diffusion-weighted MR imaging (DWI) in differentiating between glioblastoma and primary central nervous system lymphoma in real-time exam interpretation

Christopher Stuart

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

Pejman Rabiei

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

Andrea LugoAndrea Lugo

McGovern Medical School, University of Texas Health Science Center at Houston, TX, USA

Octavio Arevalo

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

Laura Ocasio

Memorial Hermann Hospital, TMC, TX, USA

Mumtaz Syed

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

Roy Riascos

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

Jay-Jiguang Zhu

Vivian L. Smith Department of Neurosurgery, University of Texas Health Science Center at Houston, TX, USA

Chunyan Cai

Department of Internal Medicine, University of Texas Health Science Center at Houston, TX, USA

Arash Kamali

Department of Diagnostic and Interventional Imaging, University of Texas Health Science Center at Houston, TX, USA

DOI: 10.15761/NNS.1000115

Article
Article Info
Author Info
Figures & Data

Abstract

Given the significant different treatment strategy of glioblastoma compared to lymphoma, early non-invasive differentiation of these two malignant brain tumours is essential for treatment planning. Our study investigates the feasibility of differentiation of glioblastoma from lymphoma by measuring the apparent diffusion coefficient (ADC) values of the tumour using a very easy method on radiology PACS workstation. Forty-two (42) patients with pathology proven glioblastoma and 30 patients with pathology proven primary CNS lymphoma were retrospectively reviewed. Two different readers placed the regions of interest in the non-haemorrhagic darkest solid area of the tumour to measure the ADC values. The median of the “Mean ADC Values” (averaged between two interpreters) in the primary CNS lymphoma group was significantly lower than the median of “Mean ADC Values” in the glioblastoma group for both readers (p < 0.0001) [582 (511,687) × 10-6 mm2/s for the lymphoma group and 789 (734,896) × 10-6 mm2/s for the GBM group]. Our study offers a novel, effective and easy approach for differentiation of the glioblastoma from lymphoma.

Key words

glioblastoma, primary CNS lymphoma, mean ADC values

Abbreviations

DWI: Diffusion Weighted Imaging; ADC: Apparent Diffusion Coefficient; CNS: Central Nervous System; GMB: Glioblastoma; PACS: Picture Archiving and Communication System; FLAIR: Fluid Attenuation Inversion Recovery; T1WI: T1 Weighted Image; T2WI: T2 Weighted Image; GRE: Gradient Echo; SWI: Susceptibility Weighted Imaging; ROI: Region Of Interest; DSC: Dynamic Susceptibility-Weighted Imaging; DCE: Dynamic Contrast Enhancement; MR: Magnetic Resonance; rCBV: Relative Cerebral Blood Volume.

Introduction

Glioblastoma (GBM) has been established as the most common malignant brain tumour in adults. GBM is characterized by fast growth and poor prognosis [1]. Median survival is generally less than one year from the time of diagnosis, and even in the most favourable situations, most patients will die within two years [2]. Although less common than GBM, the incidence of primary central nervous system (CNS) lymphoma has increased in the last three decades, especially in males [3]. Primary CNS lymphoma usually manifests as a high-grade non-Hodgkin’s B-cell lymphoma with aggressive features. The median 5-year survival for primary CNS lymphoma is around 30%. The treatment options for GBM and primary CNS lymphoma are significantly different. In GBM the first-line treatment is surgical resection [4]. Whereas, in primary CNS lymphoma, the first-line treatment is chemotherapy [5,6]. Consequently, these differences highlight the need to distinguish between these two entities on early diagnostic imaging.

Diffusion weighted imaging takes advantage of the diffusion of water molecules in normal human tissues and can create images where the signal is dependent on this molecular (Brownian) motion. The apparent diffusion coefficient (ADC) can then be calculated from these images and provides useful diagnostic information. Lower ADC values denote a higher degree of restricted diffusion, and these values can be used to quantitatively assess differences in the degree of restricted diffusion [7]. Previous investigations by Sugahara et al. [7] and Kono et al. [8] have demonstrated lower grade gliomas will typically have higher ADC values. Whereas higher grade gliomas typically have lower ADC values indicative of restricted diffusion secondary to hypercellularity [7,8]. Multiple other studies have shown that primary CNS lymphoma demonstrates restricted diffusion associated with the tumour’s hypercellularity [9-11].

Previous investigations by Guo et al. [9] and Yamasaki et al. [11] have directly compared GBM and primary CNS lymphoma showing that differences in ADC value between primary CNS lymphoma and GBM are statistically significant – with lymphoma having lower ADC values. Yet, other studies have revealed this comparison to be more complicated with hypercellular GBMs also exhibiting restricted diffusion associated with low ADC values [12-16]. In 2008, studies done by Toh CH et al. [17] and Yamashita K et al. [18] have shown primary CNS lymphoma to have lower ADC values than GBM. To obtain the ADC values, Toh et al. [17] selected a single ROI placed in the center of solid enhancing tumour region, while Yamashita et al. [18] and Doskaliyev et al. [19] placed multiple ROIs spread throughout the entire tumour mass using various techniques. All of these authors used advanced imaging processing software for ROI placement and ADC value analysis. We set out to in investigate if similar results could be achieved with an experienced reader using a different technique by placing an ROI on a standard PACS workstation to obtain ADC values which would aid in diagnosis during real-time interpretation of the exam.

Materials and methods

Approval by the University of Texas and Memorial Hermann institutional review board was obtained. Forty-two (42) patients with pathology proven glioblastoma and 30 patients with pathology proven primary CNS lymphoma were retrospectively reviewed. The patients were selected from referrals to Memorial Hermann hospital at the Texas Medical Center from 2014-2017.  All patients underwent preoperative MR imaging on 1.5 or 3T magnets. Patients included in the study had not initiated steroids or other therapy prior to imaging. Patients with previous brain surgery or biopsy were also excluded. The minimum sequences required were ADC, FLAIR, T1WI, T1WI-postcontrast, GRE or SWI, and T2WI.

ADC values were acquired by two blinded readers (neuroradiology fellows) who placed regions of interest (ROIs) using a Centricity PACS workstation. The ROIs were placed in the areas of greatest hypointensity on the solid segment of the tumour using the ADC map excluding the areas with necrotic, cystic or haemorrhagic components by correlating with the other sequences such as the Gradient Echo (GRE), Susceptibility Weighted Imaging (SWI) and T2 weighted images (Figure 1). Both the “Minimum ADC Values” and “Mean ADC Values” were recorded for each patient. Control ROIs were placed in the normal contralateral white matter. Placement of one ROI in the solid segment of a tumour on the ADC map provides the reader with 3 numbers for that specific region: “Minimum ADC Value”, “Mean ADC Value”, and “Maximum ADC Value”. Basically, a “Mean ADC Value” represents the mean of the ADC values of all the pixels/voxels in one region of interest. Previous studies have shown that “Minimum ADC Values” and “Mean ADC Values” are more reliable when they are implemented to distinguish different entities [9,11]. In this study and for simplification, we have only utilized the “Mean ADC values”.

Figure 1. Apparent diffusion coefficient maps of a patient with Glioblastoma (A.) and a patient with primary CNS lymphoma (B.). Region of interests (black circles) are placed in the areas with greatest hypointensity on the solid segment of the tumor

Given that the “Mean ADC Values” in both groups of patients showed non-normal distributions, we calculated the median of the “Mean ADC Values” for comparison.

Statistical analysis was performed with SAS 9.4 (SAS Institute Inc. Cary, NC). Age distribution between two groups was compared by two-sample t-test. Gender differences were compared by Chi-square test. The ADC value and ROI area differences between the two groups were compared by Wilcoxon Rank-Sum Test. A p-value less than 0.05 was considered significant.

Results

Demographics for GBM included 16 females and 26 males with an age range of 13-86 years with a mean age of 59.2. Demographic data for the primary CNS lymphoma group included 18 females and 12 males with an age range of 21-83 years and a mean age of 65. Between the two groups there was no statistically significant difference in patient age (p = 0.37) using the two-sample t-test. There was also no statistically significant difference in patient gender (p = 0.06) using the Chi-square test. The median ROI area for reader 1 was 21.7 mm2 and the median ROI area for reader 2 was 14.2 mm2 in the GBM group. The median areas for reader 1 and reader 2 in the lymphoma group were 27 mm2 and 13.5 mm2 respectively. The difference in area between the readers was statistically significant. However, it did not impact the results as there was no statistically significant difference in ROI area between the GBM and lymphoma groups.

The median of “Mean ADC Values” in the GBM group was 811 (705,904) × 10-6 mm2/s (Median (Q1, Q3). Q1:1st quartile; Q3:3rd quartile) for reader 1 and 789 (758,881) × 10-6 mm2/s for reader 2. The median of “Mean ADC Values” in the lymphoma group was 599 (510,718) × 10-6 mm2/s for reader 1 and 589 (508,654) × 10-6 mm2/s for reader 2 (Figure 2,3, Table 1).

Figure 2. Axial magnetic resonance imaging of the brain including (A) T1WI, (B) post-contrast T1WI, (C) T2WI, (D) FLAIR, (E) SWI, and (F) ADC map. The area with greatest hypointensity on the ADC map is selected for ROI placement. Extra information derived from other MR sequences about cystic/necrotic regions (asterisks), enhancing regions (black arrow), vasogenic edema (white arrows), and spots of susceptibility (black arrowhead) is utilized for accurate ROI placement

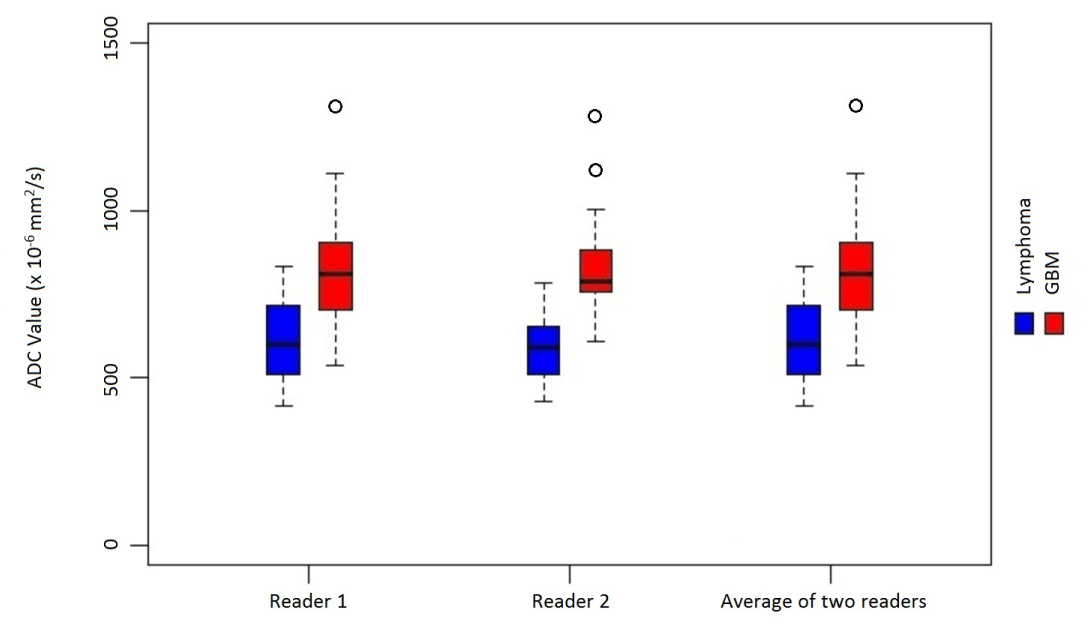

Figure 3. Distribution of “Mean ADC values” in primary CNS lymphoma and Glioblastoma

The median of “Mean ADC Values” (averaged between two interpreters) in the primary CNS lymphoma group was significantly lower than the median of “Mean ADC Values” in the glioblastoma group (p < 0.0001), where they were 582 (511,687) ×10-6 mm2/s for the lymphoma group and 789 (734,896) × 10-6 mm2/s for the GBM group.

Discussion

We demonstrated that the median of “Mean ADC Values” is significantly different when comparing GBM and primary CNS lymphoma. Specifically, primary CNS lymphoma showed a lower median “Mean ADC Value” than GBM, a finding thought to be related to hyper viscosity of tissue secondary to hypercellularity. The inverse relationship between ADC values and hypercellularity is supported by previous investigations [9].

In our study the intra-tumoral focus with the greatest degree of restricted diffusion underwent quantitative ADC value measurement by ROI placement. This novel approach does introduce a degree of subjectivity as the region is identified by the reader. However, it remains clinically pragmatic as the ROI can be placed at a standard PACS workstation while interpreting the exam using all available complementary sequences. It also doesn’t burden the interpreter with placing multiple ROIs in different regions of the tumour which can be time consuming.

It remains necessary to ensure the ROI is placed in an area which excludes necrotic, cystic, or haemorrhagic components of the tumour. Haemorrhage or necrosis may show greater diffusion restriction than the hypercellular solid tumour due to the associated increased hyper viscosity. We also avoided measuring the cystic component of the tumour as this would cause a falsely elevated ADC value. The placement of the ROIs was without regard to the enhancing or nonenhancing component of the tumour since we aimed not to be biased by the enhancement of the tumour in our measurement. The rationale behind this was to include the non-enhancing components of the tumours specifically in GBM which is notorious for having non-enhancing solid component demonstrating FLAIR hyperintensity.

Our method produces data which validates previous findings which show that ADC values are lower in primary CNS lymphoma [19]. Median of “Mean ADC Values” in the glioblastoma group were significantly higher than the median of “Mean ADC Values” in the primary CNS lymphoma group (p < 0.0001), confirming the utility of using ADC value measurement in distinguishing these entities – even if the values are obtained from a standard PACS workstation. Our findings suggest that a “Mean ADC Value” less than 700 × 10-6mm2/s should lead you to favour primary CNS lymphoma in developing your differential diagnosis. Previous studies involved placing multiple ROIs while avoiding haemorrhagic and cystic components using conventional imaging and found similar results [19]. Ahn et al. [20] examined multiple ROI placement methods and found them to be inconsistent. They describe a technique that generates an ADC value from the entire tumour volume being the most reproducible, and supportive of the finding that primary CNS lymphoma has lower ADC values than glioblastoma. The study by Yamashita et al. [18] yielded similar results while excluding blood vessels, necrosis, haemorrhage, and calcification but involved placing >10 ROIs within an enhancing region of the tumour. The study by Toh et al. [17] examined ADC and FA values using Nordic ICE (Nordic Image Control and Evaluation Version 2.16; Nordic Imaging Lab, Bergen, Norway) with an ROI placed in the enhancing region and found a significant difference for both yielding similar results to our study.

Our approach is the easiest and more practical relative to prior studies which can facilitate the differentiation of these two important tumours faster and more efficiently. We measured ADC values in the region of greatest restricted diffusion present on the ADC map at a standard PACS workstation and this yielded statistically significant results. This confirms the validity of a more efficient method for measuring ADC values during real-time interpretation. However, an ADC value alone is not enough to provide a definite diagnosis when differentiating these tumours. An approach which uses ADC values complemented by other imaging techniques such as perfusion weighted imaging would provide the most accurate diagnosis to guide subsequent therapy. Kickingereder et al. [21] have shown that utilizing complementary conventional and advanced imaging techniques aids in differentiating GBM from primary CNS lymphoma. Dynamic susceptibility-weighted imaging (DSC), dynamic contrast enhancement (DCE), FDG-PET, and susceptibility-weighted imaging (SWI) have all been described to aid in differentiating GBM from primary CNS lymphoma [22-26]. Limitations in our study include sample size and selection bias since only patients who had pathological proven tumour were selected. In the near future, we will combine the ADC value data with rCBV perfusion ratios of the tumours for more robust and accurate non-invasive differentiation of primary CNS lymphoma and GBM.

In conclusion, an ADC value (a quantitative measure of restricted diffusion) is a useful imaging biomarker when differentiating between primary CNS lymphoma and GBM. A reproducible method to obtain ADC values during real-time interpretation is by placing a ROI over the solid areas of greatest restricted diffusion while avoiding necrotic and haemorrhagic components.

Conclusion

Quantitative diffusion-weighted MR imaging using ADC values in standard PACS software can increase diagnostic accuracy when attempting to differentiate glioblastoma and primary CNS lymphoma.
