Role of multi-detector computed tomography in congenital heart diseases

Duong Phi Son

Medic Medical Center, Ho Chi Minh City, Vietnam

Nguyen Tuan Vu

Pham Ngoc Thach Medical University, Ho Chi Minh City, Vietnam

Phan Thanh Hai

Medic Medical Center, Ho Chi Minh City, Vietnam

DOI: 10.15761/VDT.1000163

Article
Article Info
Author Info
Figures & Data

Abstract

Background

Congenital heart diseases associated with more malformations, complex aortopulmonary collaterals and anomalous coronary artery.

Echocardiography is the initial diagnostic method but this method can be limited in complex congenital heart diseases.

Purpose

To assess the role of MDCT in congenital heart diseases (CHD) diagnosis compare with operative result and interventional angiography.

Methods

910 patients with congenital heart diseases of 31.000 patients underwent cardiac angiography with 64 and 320 section CT at Medic Medical Center since 09/09/2006 to 30/12/2015.

Results

There are 658 operated cases, most of operated cases demonstrated the exact diagnosis of MDCT in congenital heart diseases.

Conclusions

MDCT is the fast and non-invasive diagnostic method with the high accuracy, overcomes the limit of echocardiography in complex congenital heart diseases diagnosis and provides the panorama and useful informations prior to the operation.

Key words

Congenital heart diseases, Cardiac multi-detector computed tomography, Multi-detector computed tomography in congenital heart diseases, Congenital heart diseases computed tomography

Introduction

Congenital heart diseases effect ~ 1% of all live births in the general population. Complex congenital heart diseases associated with more malformations, complex aortopulmonary collaterals and anomalous coronary artery.

Over the past few decades, the diagnosis and treatment of congenital heart diseases have greatly improved [1-4]. Diagnostic tools: X-ray, ECG, echocardiography, MRI and MDCT. ECG and X-Ray suggest the diagnosis but are not specific. Echocardiography is the initial diagnostic method for patients with suspected CHD but this method can be limited in complex CHD.

The great capabilities of MRI for anatomic and functional assessment of the heart but MRI is time-consuming and may require patient sedation.

Now enable CT to be used as an accurate non-invasive clinical instrument that is fast replacing invasive cine-angiography in the evaluation of CHD [1,5,6]:

  • Improves both spatial and temporal resolution.
  • Increases scanning speed.
  • Improves diagnostic image quality by reducing respiratory artifacts

Purpose

To assess the role of MDCT in congenital heart diseases (CHD) diagnosis compare with operative result and interventional angiography

Material and methods

Subject
910 patients with congenital heart diseases of 31.000 patients underwent cardiac angiography with 64 and 640 section CT at Medic Medical Center since 09/09/2006 to 30/12/2015.

Means and scanning techniques

Medic Medical Center scanned cardiac CT by 64 MDCT Toshiba Aquilion machine and Toshiba Aquilion One (320 MDCT), 0.5mm slice thickness, 0.5mm imaging reconstruction.

  • Two phases scanning (Figure 1): Don't inject phase and contrast media injection phase:
    • + Phase doesn’t inject contrast which help locate and assess coronary artery calcification.
    • + Phase inject contrast media: Medicine chasing phase and water chasing phase.
  • Contrast pumping machine is double-barreled Stellant (Medrad).
  • To inject contrast by intravenous right hand.
  • Contrast dose used 1mL / kg.
  • Drug pump speed depends on patient status and disease.
  • Vitrea software: Reconstructed images by MPR, MIP and VRT.
  • Effective radiation dose is low (320-MDCT is 3.69±061mSv; 64-MDCT is 12-14mSv).

Figure 1. Two phases scanning.

Data analysis

  • The prospective study and case series report compare with operative and interventional angiography.
  • Data collection at the HCM city Heart Institute, Tam Duc Heart Hospital and Medic medical centre.

Results

There are 658 operated cases, most of operated cases demonstrated the exact diagnosis of MDCT in congenital heart diseases (Figures 2-17).

Figure 1. Two phases scanning.

Figure 2. Atrial septal defects and Ventricular septal defects

Figure 3. Patent ductus arteriosus; 3D images: Patent ductus arteriosus.

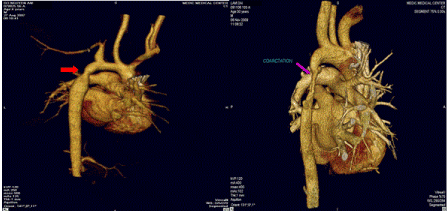

Figure 4. Coarctation of aorta.

Figure 5. Double aortic arch; 3D images and Axial: Contrast-enhanced CT double aortic arch

Figure 6. Tetralogy of Fallot; Subaortic ventricular septal defect, over riding aorta and pulmonary artery stenosis.

Figure 7. Pulmonary atresia with ventricular septal defect; Pulmonary atresia with ventricular septal defect and confluence of pulmonary artery.

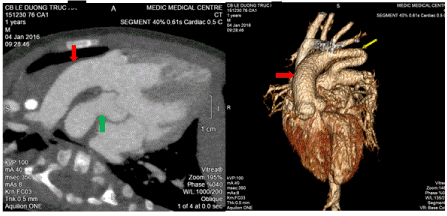

Figure 8. Transposition of great vessels; Aorta and pulmonary artery in parallel; 3D image : Aorta and Pulmonary artery switched, aorta in front of pulmonary artery.

Figure 9. Double outlet right ventricle; Both of great arteries (aorta and pulmonary artery) arise from right ventricle and aorta is in front of pulmonary artery.

Figure 10. Single ventricle; Single ventricle– main right ventricle and left hypoplastic ventricle.

Figure 11. Aortopulmonary window; Axial view: A hole between aorta and pulmonary trunk

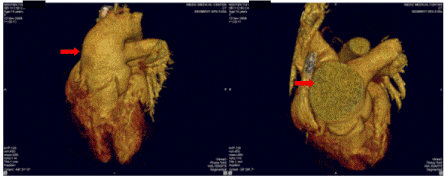

Figure 12. Truncus arteriosus; 3D images: Right and left pulmonary arteries arise from lateral aspects of truncal root reasonably distant from each or.

Figure 13a. Anomalous systemic venous return; Coronal view: Left superior vena cava connected to left atrium and hepatic vein connected to left atrium. Right superior vena cava or inferior vena cava draining into right atrium.

Figure 13b. 3D images : Left superior vena cava and inferior vena cava draining into left atrium.

Figure 14a. Anomalous pulmonary venous connection; 3D image and coronal view: Drainage of left upper pulmonary vein (LUPV) via a vertical vein to innominate vein and right superior vena cava.

Figure14b. 3D images: Drainage of right upper pulmonary vein and right lower pulmonary

Figure 14c. 3D images: Drainage of right lower pulmonary vein (RLPV) to inferior vena cava (IVC).

Figure 15. Single pulmonary artery; 3D image and Axial view: Seeing right pulmonary artery and absent left pulmonary artery.

Figure 16. Pulmonary artery trunk aneurysm; D image and Axial view: Pulmonary artery trunk and left pulmonary artery aneurysm.

Figure 17. Congenital pulmonary arteriovenous malformation; 3D view: Right-to-left shunt between the pulmonary and vein.

Discussion

Congenital heart diseases associated with more malformations, complex aortopulmonary collaterals and anomalous coronary artery.

Echocardiography is the initial evaluative method for pre- and postoperation congenital heart diseases but this method can be limited in complex cases.

Multi-detector computed tomography overcomes the limit of Echocardiography by multiplanar reconstruction (MPR) and volume rendered techniques (VRT) reconstruction.

Volume rendered techniques (VRT) reconstruction clearly demonstrates the relationship between the heart and great vessels.

Conclusion

Multi-detector computed tomography is the fast and non-invasive diagnostic method with the high accuracy. Overcomes the limit of Echocardiography in complex congenital heart diseases. Provides the panorama and useful information’s prior to the surgery.
