Aneurysmal bone cyst of the maxillary sinus secondary to fibrous dysplasia: Report of a rare case and review of the literature

Umur Yollu

Gumushane Public Hospital, Otorhinolaryngology Clinic, Turkey

E-mail : bhuvaneswari.bibleraaj@uhsm.nhs.uk

Mehmet Aslan

Gumushane Public Hospital, Otorhinolaryngology Clinic, Turkey

Mehmet Yilmaz

Gumushane Public Hospital, Otorhinolaryngology Clinic, Turkey

H. Caner Inan

Istanbul University Cerrahpasa Medical School Otorhinolaryngology Department

Ferit Akil

Istanbul University Cerrahpasa Medical School Otorhinolaryngology Department

Nil Comunoglu

Istanbul University Cerrahpasa Medical School Otorhinolaryngology Department

H. Murat Yener

Istanbul University Cerrahpasa Medical School Pathology Department

DOI: 10.15761/BRR.1000104

Article
Article Info
Author Info
Figures & Data

Abstract

ABC developing within FD in head and neck region is quite rare. Clinical presentation of FD and ABC depends on the location and scope of content. The majority of reported cases were seen in male children and adolescents. Complete excision of these lesions is the recommended treatment.This report is about a 27 year-old male patient who presented with a mass in hard palate treated with total excision.

Introduction

Fibrous Dysplasia (FD) is a benign skeletal disease in which medullary bone is replaced with fibrocellular tissue. It results from abnormal fibroblast development [1].  Aneurysmal Bone Cysts (ABC) are relatively rare, benign vascular lesions and also may exist secondary to the pathological bone lesions [2].

FD in combination ABC that appears as a symptomatic or asymptomatic mass is quite rare. Clinical presentation of FD and ABC depends on the location and scope of content. The majority of reported cases are seen in male children and adolescents. Complete excision of these lesions is recommended.

Case report

27 year old male patient admitted to our clinic with complaints of swelling in hard palate and toothache. Medical history was unremarkable, and general health condition was well. On physical examination, a 4x5 cm soft mass was seen on the middle part of the hard palate. The overlying mucosa was intact and bony consistency of the hard palate could not be palpated. Nasal endoscopy was unremarkable.

Paranasal sinus CT scan revealedthat the lesion was originating from the inferior wall of the maxillary sinus and was surrounding the left posterior molar teeth. The central part of the lesion had soft tissue dansity, periferal areas had ground glass opacity and the nature of the lesion was expansile (Figure 1). Age and radiological findings of the patient were compatible with the fibrous dysplasia.

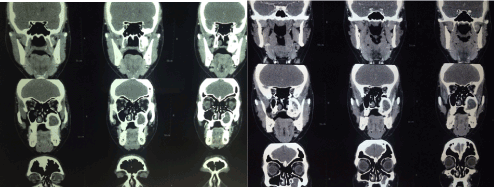

Figure 1. Expansile lesion was originating from the inferior wall of the maxillary sinus. Central soft tissue dansity and peripheral ground glass opacity can be seen.

Caldwell-Luc antrostomy was performed and the lesion that filled the maxillary sinus and expanding to hard palate was totally excised with blunt dissection. Inferior antrostomy was done and stabilisated with a rubber drain. Histopathological examination was reported as aneurysmal bone cystsecondary to fibrous dysplasia with woven bone formation and short spindle cells within the stroma (Figures 2 and 3).

Figure 2. Fibrous dysplasia shows characteristic pattern of woven bone formation and short spindle cells within the stroma (H&EX200).

Figure 3. Fibrous dysplasia shows characteristic pattern of woven bone formation and short spindle cells within the stroma (H&EX200).

Literature review and discussion

Fibrous dysplasia which was first described by Lichtenstein [3] constitutes 2,5 % of all bone tumors and %7 of benign bone tumors [4]. It is often seen in young male patients. FD can present as monostotic (%70) or polystotic (%30) disease and may be a component of McCune-Albright syndrome [5]. At the craniofacial area; maxilla, mandible, frontal and temporal bones are the most frequent sites of ivolvement. CT images usually reveal extensive diploic spaces, enlargement and ground glass opacity of the affected bones and MRI shows typically low signal intensity on T1 and T2-weighted images [6].

ABC can be seen about 1.4% of all bone tumors but only 3-6% of them present in the cranium [7]. ABC mostly affect patients under under 20 years without gender difference [8].  Fluid-filled cavities are common and can be detected on CT or MR images [9]. On histopathologic examination; ABC present with blood-filled cavernous spaces which are  usually seperated by fibrous tissue.

This report presents a case who was diagnosed as concominant FD and ABC. The occurance of ABC in combination with FD in the head and neck region is extremely rare. Up to date only several cases has been reported and most of these cases the disease is located on the skull base with only 3 cases of maxilla involvement. The cases of concomitant FD and ABC on the sinonasal region are summarized in Table 1 [10-14].

Table 1. Fibrous dysplasia with aneurysmal bone cysts at the sinonasal region

Reference

Age (years)

Gender

Symptoms

Localization

Radiological findings

Treatment

Following period

Saito et al. 1998 [10]

11/M

Nasal obstruction for 1 year

Nasal cavity and sphenoid bone

CT and MRI, irregular multilobulated tumor

Surgical excision

No recurrence for 3.5 years follow-up

Skaladzien et al. 2008 [11]

16/M

Rhinosinusitis and epistaxis

Right maxillary sinus

Large cystic lesion

Surgical excision

No recurrence for 9 months follow up

Pasquini et al. 2002 [12]

5/M

Chronic rhinosinusitis for 2 years

Right maxillary sinus

CT: Cystic lesion

Transnasal endoscopic surgery

No follow-up

Lin et al. 2004 [13]

18/M

Mass with headache

Left frontal bone

CT: Cystic spaces

Surgical excision

No follow- up

Terkawi et al. 2011 [14]

7/F

Left nasal obstruction and left eye blindness

Sphenoid and ethmoid bones

CT-MR: Cystic lesion

Endonasal - cranial resection

Recurrence was revealed after 5 months

Our case

27/M

Toothache and mass at hard palate

Left maxillary sinus and bone

CT: Expansile mass in the left maxillary sinus

Surgical resection

No recurrence for 2 years follow-up

The presentation of these lesions depends on the sites of involvement, growth rate and anatomic structures of the involved region. Craniofacial lesions usually present with symptoms resulting from the mass effect of the lesion. The lesions may present with painless mass or may cause symptoms specific to site such as nasal obstruction, headache (Saito et. al.’s patient; 10) and loss of vision (Terkavi et. al.’s patient); 14). Our case presented with mass over the hard palate. Consistent with other reports the growth pattern of our case was slow without any compression over vital structures.

Diagnosis of FD combined with ABC depends on radiologic and pathologic findings. On radiology the typical appearance of FD as ground glass opacity at the periphery of the lesion was detected on CT images combined with cystic soft tissue dansiy in the center. Intraoperative abundant bleeding rouse the suspect of ABC and postoperative definitive pathology confirmed the diagnosis ABC associated with FD. We believe that typical findings of FD combined with cystic spaces on CT images may be helpful in preoperative differential diagnosis and precautions about bleeding during surgery may be undertaken accordingly.

Optimal treatment of these lesions is total excision. Other treatment modalities are arterial embolization, sclerotherapy, cryotherapy, radiotherapy or combination of these methods but recent studies showed that radiotherapy alone has the risk of post-irradiation sarcoma [15]. In secondary ABC’s, such as our case, the treatment plan should be set according to the site of primary lesion. Most of the reported cases (concomitant FD with ABC) treated with surgical excision and the results are quite good. We treated our case by total surgical excision. The lesions impingement symptoms and findings or patients with cosmetic problems should be treated by surgery and as fibrous dysplasia has a potential of malignant transformation (0.5% of patients with monostotic FD; 4% of patients with polystotic FD can develop malignant transformation) [16] the patients should be closely monitored. In our case after two years follow-up the patient is well without reccurence.

In conclusion although combination of FD and ABC is rare, awareness of such cases may lead preoperative suspect and preoperative and intraoperative precautions on bleeding from ABC.

References

  1. Cholakova R, Kanasirka P, Kanasirka N, Chencev Iv., Dinkova A (2010) Fibrous dysplasia in the maxillo-mandibular region-case report. Journal of IMAB; 16: 10-13.
  2. Kransdorf MJ, Sweet DE (1995) Aneurysmal bone cyst: concept, controversy, clinical presentation, and imaging. AJR Am J Roentgenol 164: 573-580. [Crossref]
  3. Lichtenstein L (1977) Bone tumors (5th Edn). St Louis: CV Mosby. PP 403-422.
  4. Edgerton MT, Persing JA, Jane JA (1985) The surgical treatment of fibrous dysplasia with emphasis on recent contributions from cranio-maxillofacial surgery. Ann Surg 202: 459-479. [Crossref]
  5. Albright F, Butler AM, Hampton AO, Smith PH (1937) Syndrome characterized by osteitis fibrosa disseminata, areas of pigmentation and endocrine dysfunction, with precocious puberty in females: report of five cases. NEngl J Med 216: 727-746.
  6. Brown EW, Megerian CA, McKenna MJ, Weber A (1995) Fibrous dysplasia of the temporal bone: imaging findings. AJR Am J Roentgenol 164: 679-682. [Crossref]
  7. Rapp TB1, Ward JP, Alaia MJ (2012) Aneurysmal bone cyst. J Am Acad Orthop Surg 20: 233-241. [Crossref]
  8. Wheeles CR III (2013) Anerysmal bone cyst. In: Wheels CR III (Edr.) Wheels’ textbook of orthopedics. Data Trace Internet Publishing, LLC.
  9. Kransdorf MJ, Sweet DE (1995) Aneurysmal bone cyst: concept, controversy, clinical presentation, and imaging. AJR Am J Roentgenol 164: 573-580. [Crossref]
  10. Saito K, Fukuta K, Takahashi M, Seki Y, Yoshida J (1998) Benign fibroosseous lesions involving the skull base, paranasal sinuses,and nasal cavity. Report of two cases. J Neurosurg 1998, 88: 1116-1119.
  11. Skladzierin J, Oles K, Zagolski O, Moskala M, Sztuka M, et al. (2008) A giant cranial aneurysmal bone cyst associated with fibrous dysplasia. B-ENT 4: 29-33. [Crossref]
  12. Pasquini Ernesto, Compadretti Ceroni Giacomo, Sciarretta Vittorio, Ippolito Antonio (2002) Transnasal endoscopic surgery for the treatment offibrous dysplasia of maxillary sinus associated to aneurysmal bone cystin a 5-year-old child. Int J Pediatr Otorhinolaryngol 62: 59-62.
  13. Lin WC, Wu HT, Wei CJ, Chang CY (2004) Aneurysmal bone cyst arising from fibrous dysplasia of the frontal bone (2004:2b). Eur Radiol 14: 930-932. [Crossref]
  14. Terkawi AS, Al-Qahtani KH, Baksh E, Soualmi L, Mohamed Ael-B, et al. (2011) Fibrous dysplasia and aneurysmal bone cyst ofthe skull base presenting with blindness: a report of a rare locally aggressive example. Head Neck Oncol 3: 15. [Crossref]
  15. Sanghvi DA, Iyer VR, Chagla AS, Shenoy A (2010) Intradiploic frontal bone aneurysmal bone cyst in a child: a case report. Dentomaxillofac Radiol 39: 252-255. [Crossref]
  16. Ruggieri P, Sim FH, Bond JR, Unni KK (1994) Malignancies in fibrous dysplasia. Cancer 73: 1411-1424. [Crossref]

Article Type

Review Article

Publication history

Received date: October 01, 2017
Accepted date: October 23, 2017
Published date: October 27, 2017

Copyright

© 2017 Yollu U. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Citation

Yollu U (2017) Aneurysmal bone cyst of the maxillary sinus secondary to fibrous dysplasia: Report of a rare case and review of the literature. Biomed Res Rev 1: DOI: 10.15761/BRR.1000104
