Osteoid osteoma (OO) is a benign osteogenic tumour first reported by Jaffe in 1935. OOs may affect any bone, but more than half of the tumors occur in the long bones of the lower extremities. The frequency of OOs affecting the ribs is extremely low (1-1.4%), with only 14 reported cases with surgical intervention to date. Complete surgical excision is the standard treatment method for osteoid osteoma and is usually offered to patients experiencing chronic and substantial pain that is not relieved by conservative treatment. In this report we present a case of osteoid osteoma of the posterior part of the shaft of the sixth rib affecting a 30-year-old male, who had presented with symptoms of severe pain over the affected area and underwent surgical resection. Excised rib segment showed no osteosclerotic lesion on X ray so immediately extended resection of sixth rib was done. Here we have tried to evaluate the importance of the presence of the skeletal scintigraphy or C Arm image intensifier intra operatively by comparing our experience with the available literature.

Keywords

osteoid osteoma, rib, image intensifier

Introduction

Osteoid osteoma is a type of benign bone tumor, which was first described by Jaffe in 1935 [1]. It is a rare condition, which accounts for only 3% of primary bone tumors. Individuals aged between 5 and 24 years old are the most commonly affected [2]. The main symptom of the disease is pain that worsens at night, which may be alleviated by NSAIDs (non-steroidal anti-inflammatory drugs). Current treatment modalities include surgical excision, as well as less invasive techniques. After treatment, symptoms can be controlled. The most commonly affected sites are the long bones of the lower extremities and the patient outcome is good [3].

Case report

A 30-year-old male complained of nocturnal pain in his left posterior chest which had persisted for 2 years. Conservative treatment was performed for a period of 12 months with administration of NSAIDs at a nearby hospital. His symptoms were refractory to medication. Therefore, he was referred to our hospital for further treatment. At the initial visit to our hospital, there was no local tenderness, swelling, or redness, but the patient complained of severe pain over the left side of the back, inferior to the left scapula. A plain radiograph showed mild bone sclerosis of the posterior part of the left 6th rib. CT examinations revealed a small (6 × 6 mm) well demarcated osteosclerotic lesion in the posterior end of the left 6th rib; minimal periosteal reaction was noted along the rib (Figure 1). No centrally calcified nidus was noted. Pre-operative suspicion was strongly of that of an osteoid osteoma. The patient was taken up for surgery and under GA through posterior minithoracotomy posterior segment of sixth rib was excised (Figure 2a).

Figure 1. a) Small (6 × 6 mm) well demarcated osteosclerotic lesion in the posterior end of the left 6th rib in propt CT scan b) Post opt CT scan.

Figure 2. a) Intra Operative sixth rib, b) After closure of incision.

The excised portion of the 6th rib was sent for X ray, however no osteosclerotic lesion was present in that (Figure 3a). So immediately extended resection involving the 6th and 7th ribs was done. The resected 7th rib showed the osteosclerotic lesion this time on X ray (Figure 3b). Incision closed in layers after keeping negative suction drain (Figure 2b). Patient extubated and shifted to ward.The resected bone segments of both sixth and seventh rib externally looked same (Figure 4a and 4b) so we sent them for histopathological examination.

Figure 3. a) No osteosclerotic lesion 6 rib b) Osteosclerotic lesion seen 7 rib.

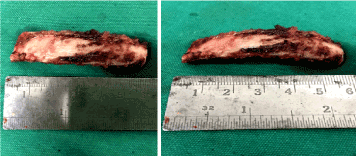

Figure 4. Resected rib segments a) Sixth rib b) Seventh rib.

Post operatively patient was comfortable. Chest X ray done and compared with preopt Chest X ray (Figure 5a and 5b). Drain removed after 48 hours and patient was discharged on fifth postopt day.Stich removal was done on fiftinth postopt day .

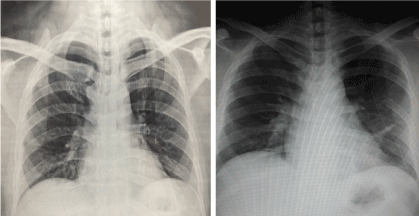

Figure 5. Chest X ray a) Preopt b) Postopt.

Histopathological examination of sixth rib was normal but seventh rib revealed the presence of osteoid tissue in a background stroma of fibrovascular tissue and thin trabeculae inter-anastomosing with a single layer of osteoblasts (Figure 6).

Figure 6. Histopath seventh rib under low and high power.

Discussion

OO is a benign osteogenic tumour first reported by Jaffe [1] in 1935. OOs may affect any bone, but more than half of the tumours occur in the long bones of the lower extremities. The frequency of OOs affecting the ribs is extremely low (1-1.4%), with only 14 reported cases with surgical intervention to date [3-16]. Our case had presented itself at an age which is beyond the normal age group of incidence [3]. Osteoid osteomas are characterized by a well-demarcated core with a typical size of <1 cm and by a distinctive surrounding zone of reactive bone formation [3]. The defining symptom of osteoid osteoma is pain during the night that responds to nonsteroidal anti?inflammatory drugs and salicylates. The lesions most commonly involve the posterior or posterolateral shaft of the rib and, upon imaging, present with similar features to tumours located elsewhere in the body. Imaging typically reveals a small radiolucent lesion with a thick sclerotic margin of reactive bone. Due its accuracy in detecting the nidus, CT is the preferred imaging technique used for the assessment of osteoid osteomas [3,7,15,18]. When the osteoid osteoma occurs in the posterior portion of the rib near the spine, it may lead to scoliosis [19]

Both conservative and operative techniques have been reported for the treatment of OO. Conservative treatment consists of NSAID administration for a prolonged period of time, which reportedly leads to alleviation of pain in select cases. The common principle for operative treatment of OO is thorough resection of the nidus, but incomplete resection could lead to local recurrence[20]. Although the ribs are easily accessed, the reported lengths of en bloc resection of the nidus ranged from 5 to 9.5 cm, which is significantly wider than the size of the nidus, that have led to varying reports of functional impairments [3,5-7]. Klonecke et al. [20] reported that intraoperative scanning has evolved because of the excessively wide excision necessary in the past that had to be planned to help guarantee complete removal of the lesion. Here we shall discuss about the importance of the image intensifier or skeletal scintigraphy in accurately localising the lesion and leading to minimal excision, instead of a wide local excision.

As per the available literature of the 15 cases of rib osteomas reported so far, we have come to the following consensus [3-16] as in Table 1.

Table 1. Comparision of various modalities used by surgeon.
