Three-dimensional spheroid model using cancer and stromal cells for in vitro drug screening assays

Patrice Penfornis

Cancer Institute, University of Mississippi Medical Center, Jackson, USA

E-mail : bhuvaneswari.bibleraaj@uhsm.nhs.uk

Joseph D. Fernandes

Cancer Institute, University of Mississippi Medical Center, Jackson, USA

Anu Abraham

Cancer Institute, University of Mississippi Medical Center, Jackson, USA

Bhuvaneswari Gurumurthy

Department of Biomedical Materials Science, School of Dentistry, University of Mississippi Medical Center, Jackson, USA

Amol V. Janorkar

Department of Biomedical Materials Science, School of Dentistry, University of Mississippi Medical Center, Jackson, USA

David Pasco

National Center for Natural Products Research, University of Mississippi, Oxford, USA

Radhika R. Pochampally

Cancer Institute, University of Mississippi Medical Center, Jackson, USA

Department of Biochemistry, University of Mississippi Medical Center, Jackson, USA

DOI: 10.15761/JSCRM.1000117

Article
Article Info
Author Info
Figures & Data

Abstract

One of the major drawbacks of using two dimensional cultures is that it does not reflect the physiology of modulators such as nutrients, oxygen, and metabolites of a solid tumor. Recently, there has been an explosion in studies related to developing 3D models to aid research in the fields of development, regenerative medicine and cancer. This interest is partly attributable to the interest in developing true to life models, inclusive of various cell types or extracellular components to reflect the physiological conditions of tumor microenvironment. In this short proof of concept study, we will demonstrate using natural products that a 3D system using stromal and cancer cells surpasses the sensitivity of 2D system

Key words

toxicity studies, spheroids, true-to life model, in vitro model

Introduction

In classical cancer cell culture techniques, living cells coalesce, adhere, and grow in a single-layered lawn at the bottom of the plate in a two-dimensional (2D) fashion. Therefore, all cells are simultaneously attached to the plate and exposed to all conditions and any variables in the assay that may change. This classical 2D technique of growing and testing cells in vitro is efficient, however, it does not suitably replicate true cell growth in vivo. This creates a gap for researches to surmount when trying to replicate in vitro results in an in vivo setting. For example, if cancer cells are grown in the 2D technique, the same cells in an in vivo experiment may not react to the drugs the same way due to the way the cells grow and develop in the contrasting environments of the petri dish and animal body [1]. For this reason, three-dimensional (3D) culturing has been developed to bridge this gap that is currently left between classic 2D in vitro and in vivo studies [2]. 3D culturing allows for cancer cells to grow in spheres in the culture plate that more accurately represents cancer cell growth in vivo. Assays such as hanging-drop and sarcosphere/mammosphere methods have been developed to grow cancer cells in spheres [3,4], yet this leave very little opportunity for accurate visualization of the spheres in real time due to the lack of sphere adherence. Therefore, in order to visualize the spheres grown by these methods, the spheres must be transferred from low/non-adherent plates to adherent 2D plates, then stained in order for the spheres to be visualized [5]. This means the spheres cannot be used further in any following in vivo experiments. The inability to visualize spheres in real time and continue to use them in downstream assays is exacerbated when co-culturing is concerned. Generally, cancer growth is supported by stromal support cells recruited by the cancer to help the cancer cells continue to flourish [6]. By culturing mesenchymal stem cells (MSCs) with cancer cells, stromal cell cancer support is more accurately projected. However, without real time imaging, spheres of unknown size, density, and cell to cell ratio would be used, which compromises assay integrity [7]. Therefore, these methods of growing 3D spheres are not viable in a translational sense. For this reason, our team has developed a method of growing adherent 3D cellular structures. With the ability to grow adherent spheres, we can successfully visualize 3D sphere formation in real time while keeping the spheres alive and intact to transfer to in vivo assays. This means cancer/stromal spheres can be developed and regulated in a controlled in vitro setting that more accurately represents true tumor development, then transferred to an in vivo environment that will allow further sphere development. In this proof of concept paper, the methods described will prove the benefits of growing adherent 3D cell structures compared to classical 2D and 3D culture techniques using a breast cancer model (MDA-MB-231) and osteosarcoma model (OS) KHOS cells.

Methods

Cell culture

Frozen vials of characterized human MSCs (MSCs) at passage one were obtained from the Texas A&M Health Science Center College of Medicine Institute for Regenerative Medicine and cultured in alpha-MEM (Invitrogen, Carlsbad, CA) supplemented with 17.5% of hMSCs-compatible Fetal Bovine Serum (Atlanta Biologicals, Flowery Branch, GA) and 100 U/ml penicillin, 100 μg/ml streptomycin (Invitrogen). The serum-deprived MSCs were obtained as described previously [8]. Briefly, cells were cultured until they reached 80% confluency, washed three times with phosphate-buffered saline (PBS) and then cultured in media without fetal bovine serum. MDA-MB-231 and KHOS cell lines were obtained from ATCC, Manassas, VA. Both cancer cell lines were maintained in culture with Dulbecco’s modified essential medium (Invitrogen), 10% FBS (Atlanta Biologicals, GA) and 100 U/ml penicillin, 100 μg/ml streptomycin.

DNA quantification assay (Cyquant)

After treatments, cells are washed with PBS twice and allowed to air dry. Plates are then frozen at -80°C for 20 minutes. Cells are then exposed to the lysis buffer/GR dye mix contained in the Cyquant kit (Thermo Fisher Scientific, Waltham, MA) for five minutes. After this step, the lysis/dye mix is transferred to a fresh plate to avoid any interference from cell debris. A DNA standard curve is used as a reference and the plate is then read using a fluorescence microplate reader (Synergy 4, BioTek, Winooski, VT) equipped with 480 nm excitation and 520 nm emission filters.

Expression, purification and conjugation of Elastin like Polypeptide (ELP)

Elastin like Polypeptide (ELP) was obtained from genetically modified Escherichia coli bacteria with gene for (VPGVG)40 (V = valine, P = proline, G = glycine), by a suspension culture in terrific broth and purified by inverse phase transitional cycling, dialyzed against deionized water and lyophilized as previously described [9,10]. Chemical conjugation of ELP was done using polyethyleneimine (PEI, MW = 800 Da, Sigma, St. Louis, MO), using activation of ELP with N-hydroxysuccinimide (NHS) and 1-ethyl-3-(3-dimethyl aminopropyl) carbodiimide hydrochloride (Sigma) as described previously in [9,10].

ELP-PEI coating of plates

ELP-PEI coating was made accordingly to [9,10]. Briefly, ELP-PEI conjugate was coated atop a 96-well TCPS plate (Corning Costar, Corning, NY, USA) using 200 µL of 5 mol% ELP-PEI solution per well. The plate was kept in a dry incubator at 37°C for 2 days in order to evaporate the solvent and form the coating.

Natural products toxicity assay

Cancer cells were grown in 10% serum conditions while MSCs were grown in 17.5% serum or 0% serum (serum deprived conditions). Cells were then co-cultured into standard 96-well adhesive plates and allowed 24 hours for cells to adhere in 10% serum conditions. Next, the cells were exposed to various natural products for 24 hours. All natural products were prepared fresh from powered extracts dissolved in DMSO. Following natural product exposure, cells were washed with PBS and the DNA quantification assay (Cyquant) protocol was used per manufacturer protocol.

Live Imaging with fluorescent cell membrane staining

Live Imaging was done at the UMMC Non-Embryonic Stem Cell Core and School of Dentistry. KHOS and MDA-MB-231 cells were grown in 10% serum conditions until confluency was reached, cancer cells (KHOS or MDA-MB231 were stained with PKH67 (green fluorescence) and MSCs with PKH26 (red fluorescence) according to manufacturer’s protocol (Sigma). Once stained, cells were transferred into regular 2D cell culture plates (Corning) or 3D ELP-PEI coated plates as described above in three different conditions: alone, co-cultured with MSCs, or co-cultured with MSCs exposed to serum deprived conditions (SD-MSCs). A time lapse protocol took pictures of selected areas of sphere congregation in each well every two hours for 60 hours using an EVOS Auto fl microscope (Thermo Fisher Scientific, Waltham, MA) or Olympus IX-81 microscope (Olympus, Center Valley, PA).

Results

2D vs 3D toxicity assays

To compare between 2D and 3D co-cultures, natural product toxicity assays were utilized. Cancer and stromal cells were grown in a timely manner in order to be harvested and re-plated at the same time into either 2D or 3D culture plates. Cells were allowed 24 hours to settle and begin sphere formation before being introduced to natural agents. On a panel of natural products, two most effective agents, turmeric and curcumin, were selected in a dose response curve type assay. After 24 hours of product exposure, cells were washed, stained, and analyzed using a DNA quantification analysis (Cyquant assay). In the 2D model, a 30.1 ± 7.6% decrease of cell proliferation is observed at a dose of 30 µg/mL turmeric (Table 1 and Figure 1). A further trend of decrease in proliferation is also observed when KHOS cells were co-cultured in presence of MSCs or SD-MSCs (40.3 ± 7.1% and 41.3 ± 7.2 % respectively). However, in the 3D model, a significant decrease of cell proliferation is observed compared to 2D model; First, KHOS cells proliferation significantly reduced at the dose of 30 µg/mL of turmeric (65.4 ± 7.2% vs. 30.1 ± 7.6%). Second, the co-culture of KHOS with MSCs or SD-MSCs display a significant stronger reduction of cell proliferation (85.1 ± 0.6% and 81.0 ± 2.0% respectively). The effect of curcumin, the refined product of turmeric, is moderated in 2D models but showed also more potent inhibitory effects in 3D model, especially in co-culture conditions (Table 2 and Figure 1).

Table 1. Inhibitory effects of turmeric on KHOS osteosarcoma cell proliferation in 2D and 3D cell culture models. Data are expressed as % of inhibition ± SE.

Conditions

2D

3D

KHOS

301 ± 7.6

65.4 ± 7.2

KHOS+MSCs

40.3 ± 7.1

85.1 ± 0.6

KHOS+SD-MSCs

41.3 ± 7.2

81.0 ± 2.0

Table 2. Inhibitory effects of curcumin on KHOS cells proliferation in 2D and 3D cell culture models. Data are expressed as % of inhibition ± SE.

Conditions

2D

3D

KHOS

20.2 ± 2.4

7.5 ± 3.4

KHOS+MSCs

18.1 ±1.6

21.9 ± 2.3

KHOS+SD-MSCs

16.7 ± 10.3

30.4 ± 4.5

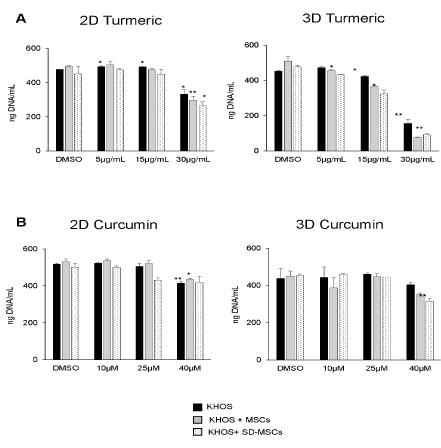

Figure 1. Graph representation of inhibitory effects of turmeric (A) and curcumin (B) on KHOs osteosarcoma cells proliferation in presence of normal mesenchymal stem cells (MSCs) or serum-deprived MSCs (SD-MSCs). *: P<0.05 and **: P<0.01.
